How Spring Boot Works Internally – Complete Guide (2026)

Discover how Spring Boot works internally with easy explanations. Learn about auto-configuration, DispatcherServlet, bean lifecycle, and architecture with practical examples for beginners and Java developers.

---

Introduction – Why Understanding Spring Boot Internals Matters

Spring Boot has revolutionized Java development by making it easy to create production-ready applications with minimal configuration. But behind the simplicity lies a powerful internal mechanism that handles everything — from configuration to request handling.

Understanding how Spring Boot works internally helps you:

• Debug complex issues efficiently
• Optimize performance
• Write cleaner, maintainable code
• Become a more confident Java developer

In this guide, we’ll break down Spring Boot internals in a step-by-step, easy-to-understand way, with code examples you can try yourself.

---

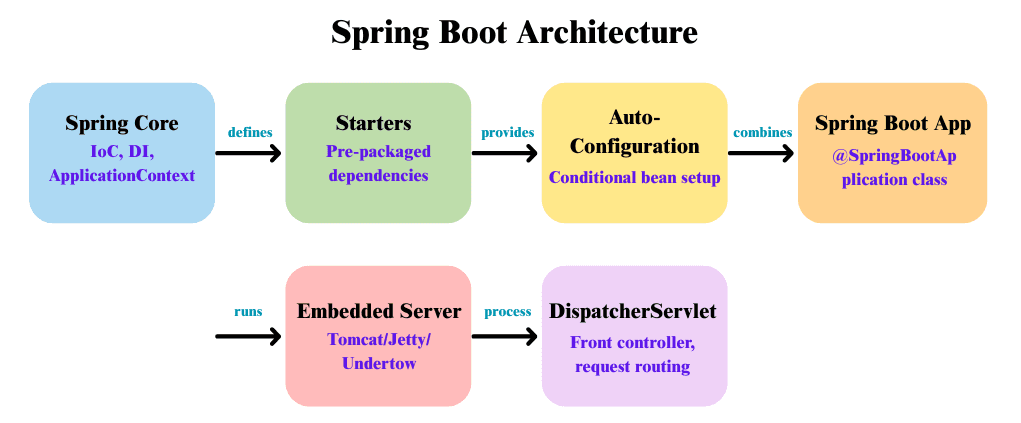

Spring Boot Architecture – The Big Picture

Spring Boot is built on top of the Spring Framework, but it adds “convention over configuration”, meaning it makes smart decisions for you so you can focus on your business logic instead of setup.

Internal Architecture:

1. Spring Core – Manages Dependency Injection (DI), beans, and the ApplicationContext, which is the central container for all your objects.
2. Spring Boot Starters – Pre-packaged sets of dependencies for common tasks (web apps, databases, security).
3. Auto-Configuration – Automatically configures beans based on classpath and properties.
4. Spring Boot Application Class – Entry point annotated with @SpringBootApplication.
5. Embedded Server – Built-in servers like Tomcat, Jetty, or Undertow.
6. DispatcherServlet – Front controller for handling all incoming HTTP requests.

In simple terms: Spring Boot connects all the pieces automatically, letting you write applications faster without worrying about complex configurations.

---

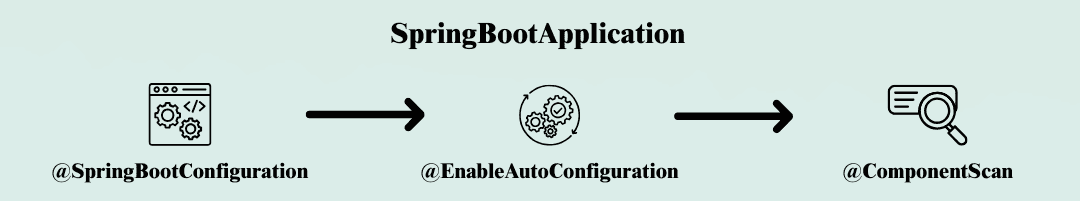

@SpringBootApplication Explained

Every Spring Boot app starts with a class annotated with @SpringBootApplication.

@SpringBootApplication
public class MyApplication {
    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }
}

Internally, @SpringBootApplication combines three annotations:

1. @SpringBootConfiguration – Marks the class as a Spring configuration class.
2. @EnableAutoConfiguration – Enables auto-configuration.
3. @ComponentScan – Scans your package for components, controllers, and services automatically.

Example: Simple REST Controller

@RestController
public class HelloController {
    @GetMapping("/hello")
    public String sayHello() {
        return "Hello, Spring Boot!";
    }
}

One annotation wires everything automatically — beans, controllers, and auto-config.

---

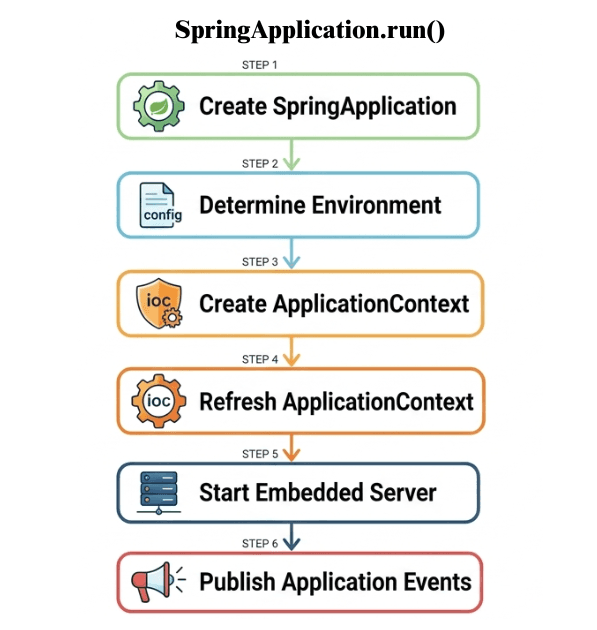

SpringApplication.run() – The Magic Behind the Scenes

When you start the app:

SpringApplication.run(MyApplication.class, args);

Spring Boot performs these steps internally:

1. Create SpringApplication instance – Loads app configuration.
2. Determine Environment – Reads application.properties/application.yml.
3. Create ApplicationContext – Central container managing beans.
4. Refresh ApplicationContext – Initialize beans and apply auto-configuration.
5. Start Embedded Server – Default is Tomcat, unless overridden.
6. Publish Application Events – Fires ApplicationStartedEvent and ApplicationReadyEvent.

Example: Reading a property during startup

@Component
public class StartupLogger implements ApplicationListener<ApplicationReadyEvent> {
    @Value("${app.name:DefaultApp}")
    private String appName;

    @Override
    public void onApplicationEvent(ApplicationReadyEvent event) {
        System.out.println("Application '" + appName + "' is ready!");
    }
}

SpringApplication.run() orchestrates everything automatically, so you can focus on writing logic.

---

Auto-Configuration – How Spring Boot Knows What to Configure

Auto-configuration is the heart of Spring Boot. It inspects your classpath and properties to configure beans automatically.

Example: With spring-boot-starter-web:

• Creates DispatcherServlet
• Configures embedded Tomcat server
• Sets up Jackson JSON converter

Override auto-configured bean example:

@Bean
@ConditionalOnMissingBean
public ObjectMapper customObjectMapper() {
    ObjectMapper mapper = new ObjectMapper();
    mapper.enable(SerializationFeature.INDENT_OUTPUT);
    return mapper;
}

Spring Boot is “opinionated” — it makes decisions for you but allows overrides.

---

DispatcherServlet – The Heart of Spring MVC

DispatcherServlet acts as the front controller, handling all HTTP requests.

Request flow:

1. Incoming request → DispatcherServlet
2. HandlerMapping → Finds controller and method
3. HandlerAdapter → Invokes the method
4. ViewResolver → Resolves view (HTML, JSON, etc.)
5. Response → Sent to client

Example: JSON endpoint

@GetMapping("/user")
public Map<String, String> getUser() {
    return Map.of("name", "John Doe", "role", "Developer");
}

DispatcherServlet is the traffic cop, directing every request correctly.

---

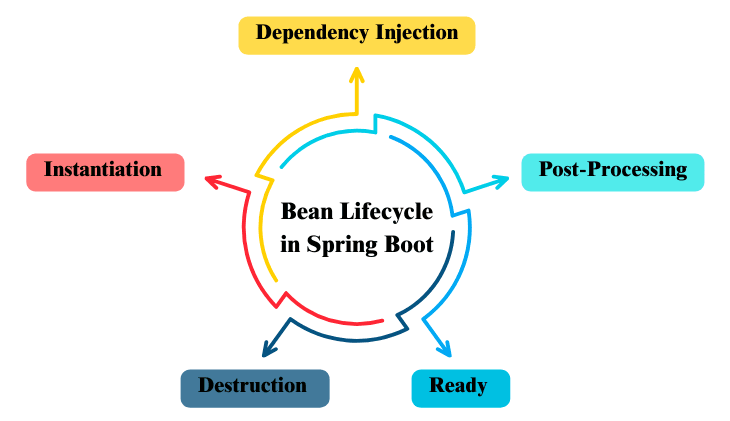

Bean Lifecycle in Spring Boot

Steps:

1. Instantiation – Spring creates the bean.
2. Dependency Injection – Dependencies injected automatically.
3. Post-Processing – Hooks like @PostConstruct or BeanPostProcessor.
4. Ready to Use – Fully initialized and in ApplicationContext.
5. Destruction – Cleaned up via @PreDestroy.

Example: Bean lifecycle hooks

@Component
public class MyBean {
    @PostConstruct
    public void init() {
        System.out.println("Bean initialized!");
    }

    @PreDestroy
    public void cleanup() {
        System.out.println("Bean destroyed!");
    }
}

---

Spring Boot Starters – Pre-Packaged Magic

Starters bundle dependencies for specific tasks:

• spring-boot-starter-web → Web apps
• spring-boot-starter-data-jpa → Database apps
• spring-boot-starter-security → Security

Example: Simple JPA entity & repository

@Entity
public class User {
    @Id @GeneratedValue
    private Long id;
    private String name;
    // getters & setters
}

public interface UserRepository extends JpaRepository<User, Long> {}

Workflow:

1. Add starter → Maven/Gradle downloads dependencies
2. Auto-Configuration applies → Beans are created automatically
3. App is ready → Minimal setup

Starters save days of configuration work.

---

Spring Boot Lifecycle Events – Hooks You Can Use

Event	When it Occurs	Typical Use Case
ApplicationStartingEvent	Before anything	Log startup info
ApplicationEnvironmentPreparedEvent	Environment ready	Modify properties
ApplicationPreparedEvent	Context initialized	Customize/register beans
ApplicationReadyEvent	App ready	Start background tasks

Example: Using @EventListener

@Component
public class AppEvents {
    @EventListener
    public void onAppReady(ApplicationReadyEvent event) {
        System.out.println("Application is ready! Time: " + LocalDateTime.now());
    }
}

---

Practical Tips – With Example

• Keep main class at root package
• Profile-based config:

# application-dev.yml
server.port: 8081
spring.datasource.url: jdbc:h2:mem:devdb

# application-prod.yml
server.port: 8080
spring.datasource.url: jdbc:mysql://prod-db:3306/proddb

• Conditional beans with @ConditionalOnMissingBean
• Enable lazy initialization for large apps
• Monitor startup with spring-boot-starter-actuator

---

Conclusion

Spring Boot works like a well-oiled machine, connecting all components seamlessly:

• Auto-Configuration handles setup
• DispatcherServlet manages requests
• ApplicationContext manages beans
• Starters reduce dependency headaches

By understanding these internals, you can:

• Debug efficiently
• Write optimized, maintainable code
• Scale applications confidently

Learning Spring Boot internals turns you from a regular user into a power developer, capable of building robust, production-ready Java apps.

---

FAQs – Spring Boot Internals

Q1: What is the role of DispatcherServlet in Spring Boot?

Ans: It acts as a front controller, routing all incoming HTTP requests to the appropriate controllers and resolving views (HTML, JSON, etc.).

Q2: How does Spring Boot auto-configuration work?

Ans: Spring Boot inspects the classpath, application properties, and conditions to automatically configure beans and components, reducing manual setup.

Q3: What is the importance of @SpringBootApplication?

Ans: It combines three annotations into one:

• @SpringBootConfiguration – Marks a configuration class
• @EnableAutoConfiguration – Enables auto-configuration
• @ComponentScan – Scans packages for beans and controllers

This simplifies your application setup significantly.

Q4: Can I override Spring Boot auto-configured beans?

Ans: Yes, you can override them by either:

• Using @ConditionalOnMissingBean
• Defining your own bean of the same type in a configuration class

Q5: What are Spring Boot Starters?

Ans: Starters are pre-packaged dependency sets for specific tasks like web apps, databases, or security, which save time and reduce manual configuration.
