Creating & Using Modules

Modern Java applications are complex, so organizing code properly is very important. To solve this, Java introduced the Java Module System (JPMS) in Java 9.

A module in Java is a way to group related packages, classes, and resources into a single unit. It helps in building clean, secure, and scalable applications.

Modules make Java development more structured, especially for large enterprise applications, by improving code organization and maintainability.

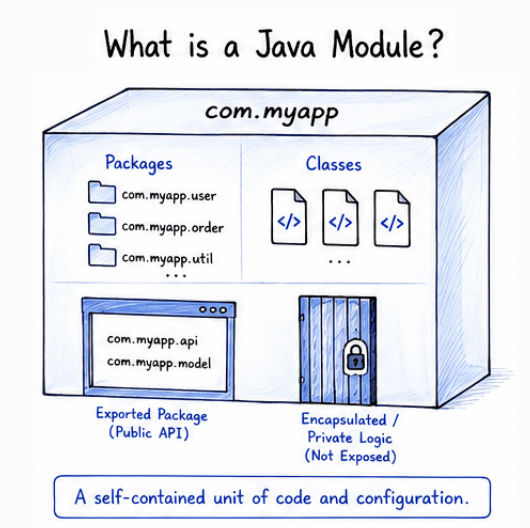

What is a Java Module?

A Java module is a self-contained unit that groups related components together in a structured way.

It typically includes:

• Packages

• Classes

• Resources

• A special configuration file called module-info.java

A module clearly defines:

• What parts of the code are accessible outside the module

• What remains private and hidden inside the module (encapsulation)

Example

module com.myapp {
    exports com.myapp.service;
}

In this example, only the com.myapp.service package is accessible outside the module, while all other packages remain hidden by default.

Creating Custom Modules in Java

Creating a custom module is the first step in modular programming. It helps you organize your project into a clean and maintainable structure.

Step 1: Create Folder Structure

project/
 └── src/
      └── com.app.demo/
           ├── module-info.java
           └── com/app/demo/Main.java

This structure separates module configuration and source code properly.

Step 2: Create module-info.java

module com.app.demo {
    exports com.app.demo;
}

Here,

• We created a module named com.app.demo

• We are allowing other modules to access the com.app.demo package

• All other packages (if any) remain hidden by default

Step 3: Create Java Class

package com.app.demo;

public class Main {
    public static void main(String[] args) {
        System.out.println("Custom Java Module Created!");
    }
}

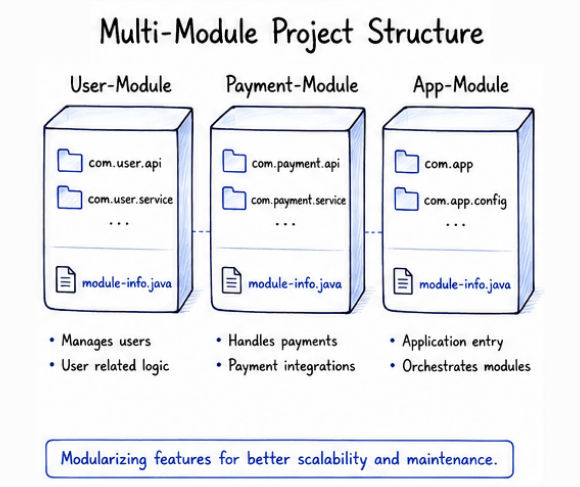

Multi-Module Project Structure in Java

In real-world Java applications, we don’t use a single module. Instead, we use multi-module projects to separate different features and keep the code organized.

Each module is responsible for a specific part of the application.

Example Structure:

project/
 ├── user-module/
 │     ├── module-info.java
 │     └── User.java
 │
 ├── payment-module/
 │     ├── module-info.java
 │     └── Payment.java
 │
 └── app-module/
       ├── module-info.java
       └── Main.java

Benefits of Multi-Module Structure:

• Better project organization and clean code structure

• Easier debugging and issue tracking

• Independent development of different modules

• Faster builds and improved performance

• Highly scalable architecture for large applications

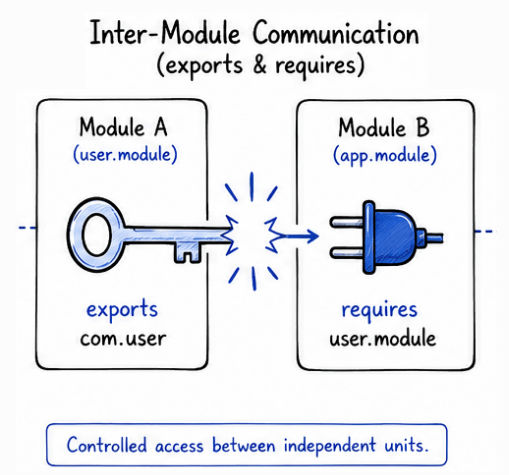

Inter-Module Communication in Java

In Java, modules can interact with each other using exports and requires. This helps one module use the code of another module in a controlled way.

Example:

User Module

module user.module {
    exports com.user;
}

Payment Module

module payment.module {
    requires user.module;
}

Here,

• user.module is sharing its package (com.user) with other modules

• payment.module depends on user.module

• So, Payment module can use the classes provided by User module

Compiling Modular Applications

To compile modules, you use --module-source-path.

Command:

javac -d out --module-source-path src $(find src -name "*.java")

What this command does

• -module-source-path src → tells Java where your module source code is located

• d out → sets the output folder for compiled files

• find src -name "*.java" → collects all Java files inside the project

Running Modular Applications

After compiling a modular project, you can run it using the module path instead of the normal classpath.

Command to Run

java --module-path out --module app.module/com.app.demo.Main

Explanation:

• module-path out → tells Java where compiled modules are stored

• app.module → name of the module you want to run

• com.app.demo.Main → main class inside the module

Difference Between Module Path vs Classpath in Java

This is one of the most important concepts in Java modules.

Advantages of Java Modules (JPMS)

• Improves code organization and structure

• Provides strong encapsulation and better security

• Makes maintenance easier in large projects

• Supports scalable and modular architecture

• Helps in faster application startup

• Ensures clean and controlled dependency management

Real-World Use of Java Modules

Java modules are widely used in large-scale applications where code needs to be well-structured and maintainable.

They are commonly used in:

• Banking applications

• E-commerce systems

• Enterprise backend systems

• Large microservices-based applications

Example:

• Order Module

• Payment Module

• Customer Module

• Inventory Module

Each module works independently but communicates when needed.

Conclusion

Java Modules (JPMS) is a powerful feature that helps developers build modern, secure, and scalable applications in a more structured way.

To work effectively with Java modules, it’s important to understand:

• How to create modules

• Multi-module project structure

• Inter-module communication

• Difference between module path and classpath

• How to compile and run modular applications

These concepts are not only useful for real-world projects but are also very important for Java interviews and enterprise development.
