Reflection Access in JPMS

Introduction

The Java Platform Module System (JPMS), introduced in Java 9, added strong encapsulation and improved security to Java applications. Because of this, reflective access to classes and packages became more restricted compared to traditional Java applications.

In older Java versions, reflection could access almost any class at runtime. However, in modular Java, a module must explicitly allow reflective access to its internal packages.

Reflection access in JPMS is especially important for frameworks and libraries such as:

• Spring Framework

• Hibernate ORM

• Dependency Injection frameworks

• Serialization libraries

• Testing frameworks

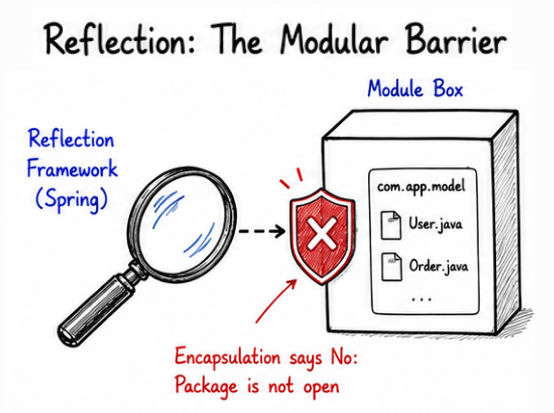

Reflection in Modular System

Reflection is a Java feature that allows applications to interact with classes dynamically at runtime.

Using reflection, a program can:

• Inspect classes and metadata at runtime

• Access fields and methods dynamically

• Create objects without direct instantiation

• Invoke methods without hardcoded references

Example of Reflection

Class<?> cls = Class.forName("com.app.User");

Object obj =
        cls.getDeclaredConstructor().newInstance();

Here, Java dynamically loads the User class and creates its object at runtime using reflection.

Reflection Before JPMS

Before the introduction of Java modules, reflection had very limited restrictions and could access most classes at runtime.

Because of this:

• Internal classes and members could be accessed easily

• Frameworks relied heavily on unrestricted reflection

• Private implementation details were often exposed indirectly

Why this became a problem

Although this flexibility was useful, it also introduced several issues:

• Increased security risks

• Weak encapsulation of internal code

• Accidental use of internal APIs that were never meant to be public

Access Restrictions in JPMS

JPMS introduced strong encapsulation, which means reflective access is restricted by default unless explicitly allowed.

What Gets Restricted?

• Non-exported packages remain hidden

• Internal classes cannot be accessed through reflection

• Private members receive stronger protection

• Deep reflection access is limited in modular applications

Example

module com.app.core {
    exports com.app.api;
}

Here:

• com.app.api is accessible to other modules

• Internal packages remain hidden by default

If reflection tries to access hidden packages, Java throws access-related errors at runtime.

Common Reflection Errors in JPMS

When reflection tries to access restricted classes or members in a modular application, Java may throw access-related exceptions.

InaccessibleObjectException

java.lang.reflect.InaccessibleObjectException

This exception occurs when reflection attempts to access internal or restricted members that are not open for reflective access.

IllegalAccessException

This exception occurs when the required reflective access permissions are not granted properly.

It usually happens when:

• A class or member is not accessible

• The module does not allow reflective access

• Access rules defined by JPMS are violated

opens Keyword Usage

To support reflection in a controlled way, JPMS provides the opens keyword.

What is opens?

The opens keyword allows a package to be accessed through reflection at runtime without fully exposing it for normal compile-time access.

This is mainly used by frameworks like Spring, Hibernate, and serialization libraries that rely on reflection.

Example

module com.app.core {
    opens com.app.model;
}

👉 Meaning:

• Reflection frameworks can access this package

• Package is not fully exported to all modules

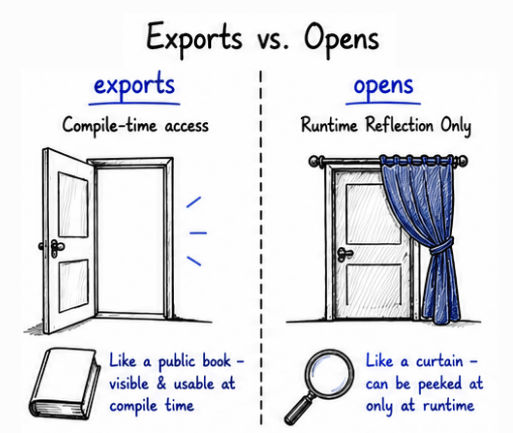

Difference Between opens vs exports

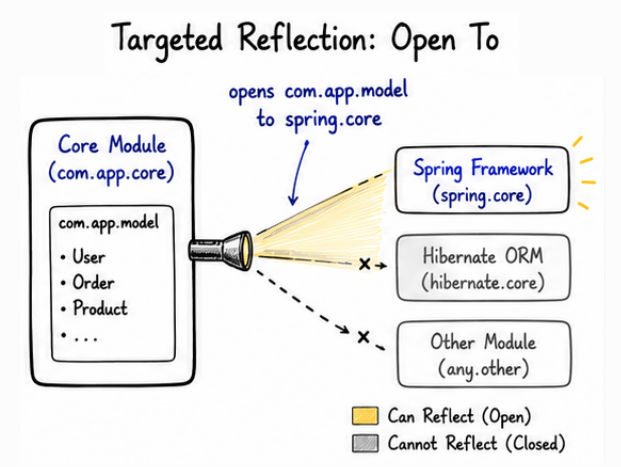

Selective Reflection Access

JPMS also allows packages to be opened only to specific modules instead of exposing them to everyone.

Example

module com.app.core {
    opens com.app.entity to spring.core;
}

👉 Meaning:

• Only spring.core can access the package reflectively

• Other modules remain restricted

Runtime Access Limitations in JPMS

Reflection in modular Java applications comes with several runtime restrictions.

• Hidden packages cannot be accessed reflectively

• Private members receive stronger protection

• Deep reflection requires explicit permission

• Internal JDK APIs are heavily restricted

Why These Limitations Exist?

These restrictions were introduced to improve:

• Security

• Stability

• Encapsulation

• Long-term maintainability

Breaking Encapsulation (When Needed)

In some situations, frameworks need access to private or internal members of a module. This is commonly referred to as breaking encapsulation.

Common Cases

• Dependency Injection frameworks

• ORM frameworks like Hibernate

• Serialization libraries

• Testing and mocking tools

Ways to Allow Access

Using opens: Allows reflective access to a specific package.

opens com.app.entity;

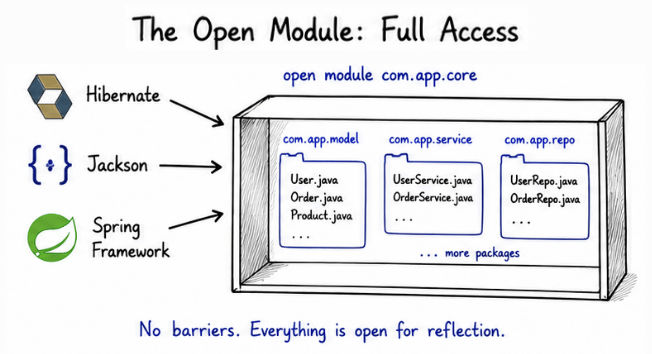

Using open module: Opens all packages in the module for reflection.

open module com.app.core {
}

Using JVM Flags

--add-opens

👉 Commonly used during migration, testing, or compatibility handling when reflective access is required temporarily.

Security Implications of Reflection in Modules

Reflection is a powerful feature, but excessive or uncontrolled reflective access can create security and maintenance issues in large applications.

Security Benefits of JPMS

JPMS improves application security by:

• Restricting access to internal packages

• Preventing accidental use of internal APIs

• Protecting sensitive implementation details

• Reducing unauthorized reflective access

• Enforcing stronger encapsulation between modules

Risks of Excessive Reflection Access

Allowing reflective access to too many packages can create several problems in modular applications.

Common risks

• Breaks strong encapsulation

• Exposes sensitive internal code

• Increases potential security vulnerabilities

• Makes applications harder to maintain and debug

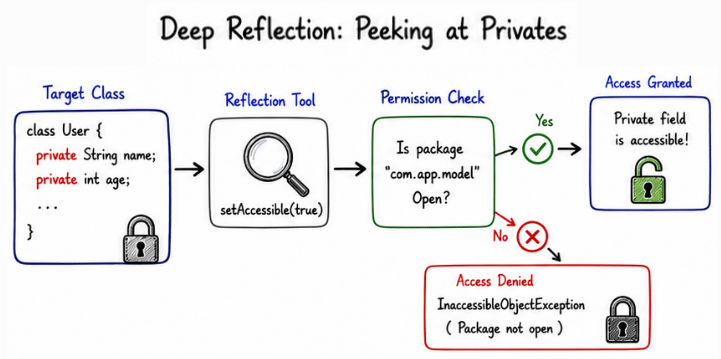

Deep Reflection in JPMS

Deep reflection refers to accessing internal members such as:

• Private fields

• Private methods

• Internal constructors

In JPMS, deep reflection is restricted by default unless the package is explicitly opened.

Common frameworks that use deep reflection

• Spring Framework

• Hibernate ORM

• Jackson

• Testing and mocking frameworks

Real-World Usage of Reflection in Frameworks

Reflection is widely used in modern Java frameworks for dynamic object handling and runtime processing.

• Spring Framework → bean creation and dependency injection

• Hibernate → entity mapping and proxy generation

• Jackson → JSON serialization and deserialization

• JUnit → automatic test discovery and execution

• Java Serialization → object reconstruction at runtime

Conclusion

Reflection access in JPMS is an important concept in modern Java development. The Java Module System improves security and modularity by restricting uncontrolled reflective access.

Using features like:

• opens

• selective package access

• controlled reflection permissions

developers can safely integrate modern frameworks while still maintaining strong encapsulation and secure modular architecture.
