ServiceLoader API (SPI) Modules

Introduction

The ServiceLoader API in Java is used to load service implementations dynamically at runtime. It is a key part of the SPI (Service Provider Interface) model and works well with the Java Module System (JPMS).

It helps developers build applications that are flexible, scalable, and plugin-based, without tightly coupling different parts of the system.

What is ServiceLoader API in Java?

The ServiceLoader API is a built-in Java feature that is used to discover and load service implementations automatically at runtime.

It is mainly used in modular and plugin-based systems where implementations are not directly hardcoded.

What it does

• Automatically finds service implementations

• Loads classes at runtime instead of compile time

• Helps build flexible and extensible applications

In simple words: ServiceLoader automatically finds and loads implementations at runtime.

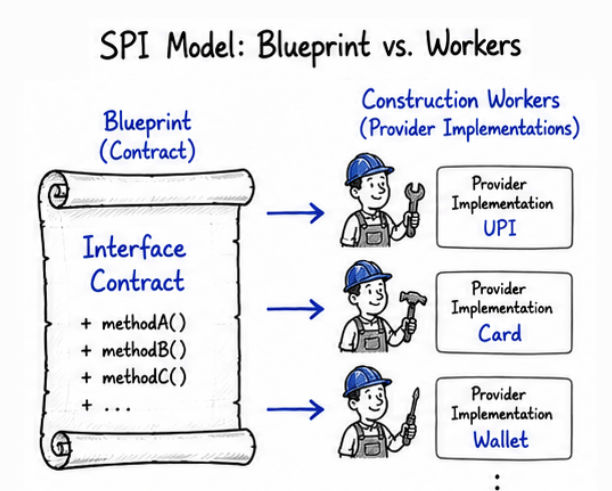

Service Provider Interface (SPI) Concept

SPI is the foundation of the ServiceLoader API in Java.

What is SPI?

SPI (Service Provider Interface) is a design approach where:

• A service interface is defined (the contract)

• Multiple implementations are created for that interface

• Java loads the required implementation dynamically at runtime, instead of hardcoding it

Structure of SPI

• Service Interface → defines what needs to be done

• Service Provider → actual implementations

• Service Loader → finds and loads the correct implementation

Real Idea

Instead of directly writing:

new UpiPayment();
new CardPayment();

We let Java decide which implementation should be used at runtime, based on configuration or module setup.

In simple words: SPI allows flexible systems where implementations can be plugged in without changing the core code.

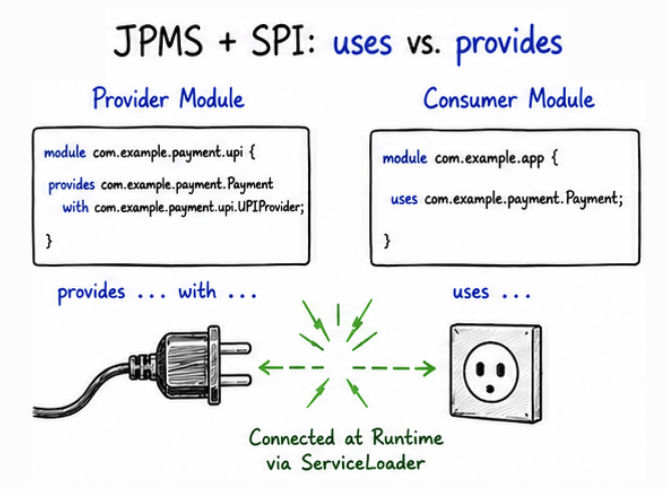

uses and provides Keywords (JPMS)

In Java Modules, SPI support is implemented using two important keywords: provides and uses.

provides keyword

The provides keyword is used by the provider module to register service implementations.

module com.app.payment {
    exports com.app.service;

    provides com.app.service.PaymentService
        with com.app.impl.UpiPayment,
             com.app.impl.CardPayment;
}

here,

• This module provides implementations of PaymentService

• These classes act as service providers

uses keyword

The uses keyword is used by the consumer module to declare that it will use a service.

module com.app.client {
    requires com.app.payment;

    uses com.app.service.PaymentService;
}

here,

• This module depends on PaymentService

• Java will load the implementation dynamically at runtime

Dynamic Implementation Loading

One of the biggest advantages of the ServiceLoader API is that it allows implementations to be loaded at runtime instead of being hardcoded.

How it works:

• A service interface is defined

• Multiple implementations are created

• Java discovers available implementations automatically

• Objects are instantiated at runtime when needed

Example

ServiceLoader<PaymentService> loader =
        ServiceLoader.load(PaymentService.class);

for (PaymentService service : loader) {
    service.pay(500);
}

👉 Here, Java automatically detects and loads all available implementations of PaymentService at runtime.

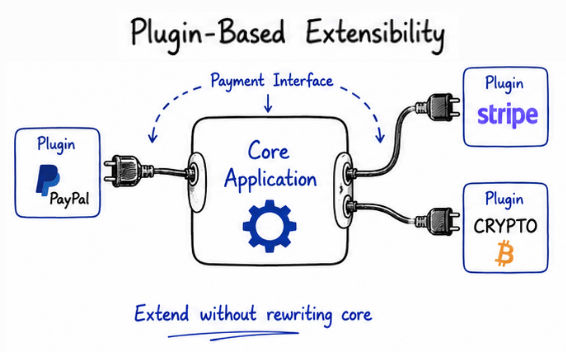

Plugin-Based Architecture Example

ServiceLoader is widely used in plugin-based systems where functionality can be extended without changing the core application.

Service Interface (Contract)

public interface PaymentService {
    void pay(double amount);
}

Plugins (Implementations)

• UPI Payment Plugin

• Card Payment Plugin

• PayPal Plugin

Each plugin provides its own implementation of the PaymentService.

Main Application

• It does not depend on any specific implementation

• It automatically detects and loads available plugins at runtime

• New plugins can be added without modifying existing code

Benefits of Plugin Architecture:

• New features can be added without modifying the core system

• Easy to scale and extend functionality

• Supports independent development of modules or plugins

• Keeps code clean with proper separation of concerns

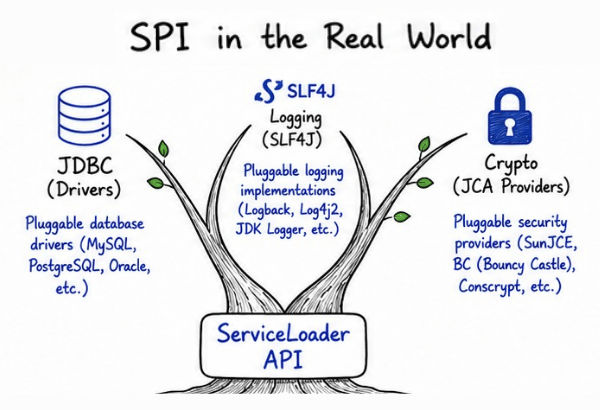

Real-World Usage in Frameworks

The ServiceLoader API and SPI concept are widely used in many real-world Java frameworks and systems to support flexibility and extensibility.

JDBC (Java Database Connectivity)

• Database drivers are loaded dynamically using SPI

• No need to hardcode database-specific implementations

Logging Frameworks

• Frameworks like SLF4J and Logback use SPI

• They dynamically load logging implementations based on configuration

Application Servers

• Servers load modules and plugins dynamically at runtime

• Helps support different deployments and extensions

Spring Boot (Indirect Usage)

• Uses similar SPI-like mechanisms internally

• Helps in auto-configuration and extensibility

Java Cryptography (JCA)

• Security providers are loaded dynamically using SPI

• Allows multiple encryption implementations to be plugged in

Advantages of ServiceLoader API

• Reduces tight coupling between modules

• New implementations can be added easily

• No need to modify existing code for extensions

• Supports plugin-based architecture naturally

• Provides flexibility at runtime

• Encourages clean and modular design

Important Working Flow (JPMS + ServiceLoader)

• A service interface is defined in a module

• One or more provider modules implement that interface

• The provides keyword registers those implementations

• The consumer module declares the service using uses

• ServiceLoader automatically loads the available implementations at runtime

Conclusion

The ServiceLoader API (SPI in Java Modules) is a powerful feature that enables Java applications to load implementations dynamically at runtime.

It helps developers build:

• Modular applications

• Plugin-based systems

• Flexible architectures

• Scalable enterprise software

Understanding ServiceLoader is very important for modern Java development, interviews, and real-world backend systems.
